Single Acting Customized Telescopic Dumper Tipper Trailer Hydraulic Cylinder

Shenzhen Dallast Technology Co., Ltd.

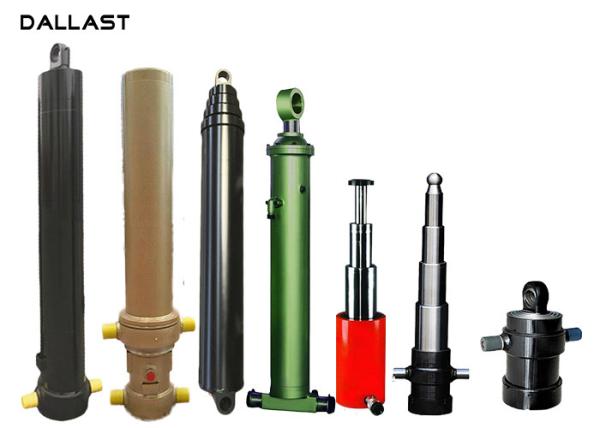

Single Acting Customized Telescopic Dumper Tipper Trailer Hydraulic Cylinder

  • 1
  • 2

Brand Name : DALLAST

Model Number : Customized

Certification : ISO9001-2009 ,TS16949

Place of Origin : shangdong

MOQ : 1PCS

Price : Negotiable

Payment Terms : T/T, L/C, Western Union,Paypal

Supply Ability : 3000PCS per year

Delivery Time : 20- 25 days after down payment

Packaging Details : shrink film, pallet, plywood case and carton

Temperature : -30°C - +100°C

Cylinder Type : For Press Cylinder

Structure : Multi-Stage Cylinder

Product Name : Hydraulic Cylinder Hydraulic RAM Hydraulic Oil Cylinder

Work medium : Hydraulic Oil

Warranty : 12 months after shipping arrival

Contact Now

Single Acting Customized Telescopic Dumper Tipper Trailer Hydraulic Cylinder

Products Discription:

Retractable hydraulic cylinder can get a longer working stroke with multi-stage sleeve-shaped piston rod hydraulic cylinder, telescopic hydraulic cylinder, also known as multi-stage hydraulic cylinder.
Telescopic hydraulic cylinder is composed of two or more piston hydraulic cylinder set, the piston rod of the previous stage piston cylinder is the cylinder of the latter piston cylinder.
When pressure oil enters from the rodless chamber, the cylinder with the largest effective area of the piston starts to protrude. When the line reaches the end point, the cylinder with the effective area of the piston begins to protrude. Telescopic hydraulic stretching out in order from large to small in order to obtain a long working stroke, the effective cylinder extending the smaller the area, the faster the rate of extension. Therefore, the slow out faster, the corresponding hydraulic thrust from large to small; this thrust, speed changes, is suitable for a variety of automatic loading and unloading machinery on the thrust and speed requirements. The order of retraction is generally followed by small to large retraction, the retraction of the axial length is shorter, smaller footprint, compact structure. Commonly used in construction machinery and other mobile machinery, such as cranes, dump trucks and other hydraulic systems.

Application: The Hydraulic Cylinders can be used for Dump Truck, Tipper Truck, Trailer, Agricultural Machinery, Engineering Machinery, Garbage Truck, Landing Platform etc;

HS Code 8412210000
Material Alloy Steel,Carbon steel,27SiMn
Seal Parker, Merkel, Hallite, Kaden
Coating All tubes are chrome plated
Working pressure 16mpa-32mpa
Stroke 2980mm-12000mm
Color red black blue gray, according to customer's requirement
Mounting Type Earring-trunnion, double trunnion, double earring (eye end)
Main export market

Experience in export North America, Australia, Asia, Middle East, Africa;

Delivery time 20-25 days after down payment
Honed tube 20-2000mm, Heat treatment, honing, rolling
Piston rod 10-1500mm,tempering, plated nickel, Chrome or ceramic
Work medium Hydraulic Oil

Advantage:

  • Professional, skilled, reliable.
  • One-stop total solution
  • Ready stock goods with fast delivery
  • Customizable: Non-standard sizes are also available
  • Small quantity is acceptable
  • Refund or replacement for any product fault
  • Professional manufacturer supplier of Hydraulic Cylinders for more than 22 years;
  • Hydraulic Cylinders Certification ISO9001:2009, SGS, TS16949, RoHS, CNAS Certification;
  • We are most of famous manufacturing company in telescopic cylinders.
FC Type Hydraulic Cylinder
MODEL NO. Stage Largest Stage Diameter Stroke The largest sleeve OD Mounting distance
(mm) (mm) (mm) (mm)
FC-3-110-3205 3 110 3205 168 343
FC-3-110-3460 3 110 3460 168 343
FC-3-129-2980 3 129 2980 218 343
FC-3-129-3205 3 129 3205 218 343
FC-3-129-3460 3 129 3460 218 343
FC-3-129-3880 3 129 3880 218 343
FC-3-129-4270 3 129 4270 218 343
FC-4-129-4280 4 129 4280 218 343
FC-4-129-4280 4 129 4280 218 343
FC-4-129-5180 4 129 5180 218 343
FC-4-149-3680 4 149 3680 218 343
FC-4-149-3980 4 149 3980 218 343
FC-4-149-4280 4 149 4280 244 343
FC-4-149-4620 4 149 4620 244 343
FC-4-149-4940 4 149 4940 244 343
FC-4-149-5180 4 149 5180 244 343
FC-4-149-5460 4 149 5460 244 343
FC-4-169-4280 4 169 4280 244 343
FC-4-169-4620 4 169 4620 244 343
FC-4-169-4940 4 169 4940 244 343
FC-4-169-5180 4 169 5180 244 343
FC-4-169-5460 4 169 5460 244 343
FC-5-169-5355 5 169 5355 244 343
FC-5-169-5780 5 169 5780 244 343
FC-5-169-6180 5 169 6180 244 343
FC-5-169-6830 5 169 6830 244 343
FC-5-169-7130 5 169 7130 244 343
FC-5-169-7630 5 169 7630 244 343
FC-5-169-8130 5 169 8130 244 343
FC-5-169-9030 5 169 9030 244 343
FC-5-169-9530 5 169 9530 244 343
FC-4-191-5460 4 191 5460 274 343
FC-5-191-5780 5 191 5780 274 343
FC-5-191-6180 5 191 6180 274 343
FC-5-191-7130 5 191 7130 274 343
FC-5-191-7630 5 191 7630 274 343
FC-5-191-8130 5 191 8130 274 343
FC-5-191-9030 5 191 9030 274 343
FC-5-191-9530 5 191 9530 274 343
FC-5-214-7610 5 214 7610 274 343
FC-5-214-9030 5 214 9030 274 343

Product Tags:

dump truck hydraulic ram



dump truck telescopic cylinder


MODEL NO. Stage First Stage Diameter Stroke Largest Sleeve OD Closed length Mounting distance
[mm] [mm] [mm] [mm] [mm]
FC-3-107-2855 3 107 2855 152 1268 311
FC-3-107-3115 3 107 3115 152 1368 311
FC-3-107-3265 3 107 3265 152 1418 311
FC-3-107-3415 3 107 3415 152 1468 311
FC-3-107-3715 3 107 3715 152 1568 311
FC-3-126-3230 3 126 3230 219 1403 343
FC-3-126-3680 3 126 3680 219 1553 343
FC-3-126-3830 3 126 3830 219 1603 343
FC-3-126-4400 3 126 4400 219 1803 343
FC-4-126-4145 4 126 4145 219 1357 343
FC-4-126-4345 4 126 4345 219 1407 343
FC-4-126-4545 4 126 4545 219 1457 343
FC-4-126-4745 4 126 4745 219 1507 343
FC-4-126-4945 4 126 4945 219 1557 343
FC-4-126-5145 4 126 5145 219 1607 343
FC-3-145-3230 3 145 3230 219 1403 343
FC-3-145-3680 3 145 3680 219 1553 343
FC-3-145-3830 3 145 3830 219 1603 343
FC-4-145-4110 4 145 4110 219 1357 343
FC-4-145-4310 4 145 4310 219 1407 343
FC-4-145-4510 4 145 4510 219 1457 343
FC-4-145-4710 4 145 4710 219 1507 343
FC-4-145-4910 4 145 4910 219 1557 343
FC-4-145-5110 4 145 5110 219 1607 343
FC-4-145-5310 4 145 5310 219 1657 343
FC-4-145-5865 4 145 5865 219 1807 343
FC-5-145-4310 5 145 4310 219 1161 343
FC-4-165-4110 4 165 4110 244 1347 343
FC-4-165-4510 4 165 4510 244 1447 343
FC-4-165-4710 4 165 4710 244 1497 343
FC-4-165-4910 4 165 4910 244 1547 343
FC-4-165-5110 4 165 5110 244 1597 343
FC-4-165-5310 4 165 5310 244 1647 343
FC-4-165-5865 4 165 5865 244 1797 343
FC-5-165-5135 5 165 5135 244 1351 343
FC-5-165-5385 5 165 5385 244 1401 343
FC-5-165-5635 5 165 5635 244 1451 343
FC-5-165-6135 5 165 6135 244 1551 343
FC-5-165-6385 5 165 6385 244 1601 343
FC-5-165-6825 5 165 6825 244 1701 343
FC-5-165-7075 5 165 7075 244 1751 343
FC-5-165-7325 5 165 7325 244 1801 343
FC-5-165-7575 5 165 7575 244 1851 343
FC-5-165-7825 5 165 7825 244
